Screens and Doors for Fireplace Sitting Directly on Wood Floor - Project #20045

Customer Comments: I need masonry fire place door with screen, the upper end price. As you see the first picture is the style of fireplace The next two pictures are my fireplaces One 40"w x28"h One 32" w x 28"h Two glass doors Two screen doors at least 3" overlap (Im willing to consider your opinion 3 or 4" ?) Let me know the price and approximate delivery date If you hang questions call me.

Our Comments: Here are the mockups you requested shown on both of your stone fireplaces. The rest of your questions are answered in the email I sent. If you do an overlap fitting door, we recommend between 2" to 3" overlap on the top and sides. You may also wish to consider an inside fit, in which case we make the frame slightly smaller than the opening and you fill the gaps between the frame and stone with mortar.

Fireplace Opening #1: 32" W x 29 18/2" H
Fireplace Opening #2: 41" W x 29 18/2" H

Before

Before:

Affordable Aluminum Doors

Aluminum is an excellent material for fireplace doors because it does not rust and can handle high temperatures when treated with powder coated finishes. It is also the most affordable.

Stiletto

Option #1: Design Specialties Stiletto Aluminum Fireplace Glass Door in Rustic Black with Clear Glass and Mesh Backup Doors. Shown as an inside fit with mortar filling the gabs between the frame and the stone.

Bungalow

Option #2: Design Specialties Bungalow Fireplace Glass Door in Rustic Black with Clear Glass and Mesh Backup Doors. This door has a 3 1/2" wide frame with a 2 1/2" overlap.

Medium Range Steel Doors

Steel doors are more substantial than the less expensive aluminum doors. They are heavy duty and rugged and are more customizable because the frames are laser cut.

Legend

Option #3: Design Specialties Legend Fireplace Glass Door in Rustic Black with Clear Glass and Mesh Backup Doors. 3 3/4" wide frame with a 3" overlap.

Legend

Option #4: Design Specialties Legend Fireplace Glass Door with Arrow Strap Hinges and Center Bars with Wrought Iron Twist Handles in Rustic Black with Clear Glass and Mesh Backup Doors. 3 3/4" wide frame with a 3" overlap.

High End Hand Crafted Wrought Iron/Steel Doors

Hand crafted doors take on a more rugged natural look for those who appreciate craftsmanship tasteful details.

Craftsman

Option #5: Design Specialties Craftsman Fireplace Door in Forged Iron with Clear Glass and Mesh Backup Doors. Shown as an inside fit with mortar filling the gabs between the frame and the stone.

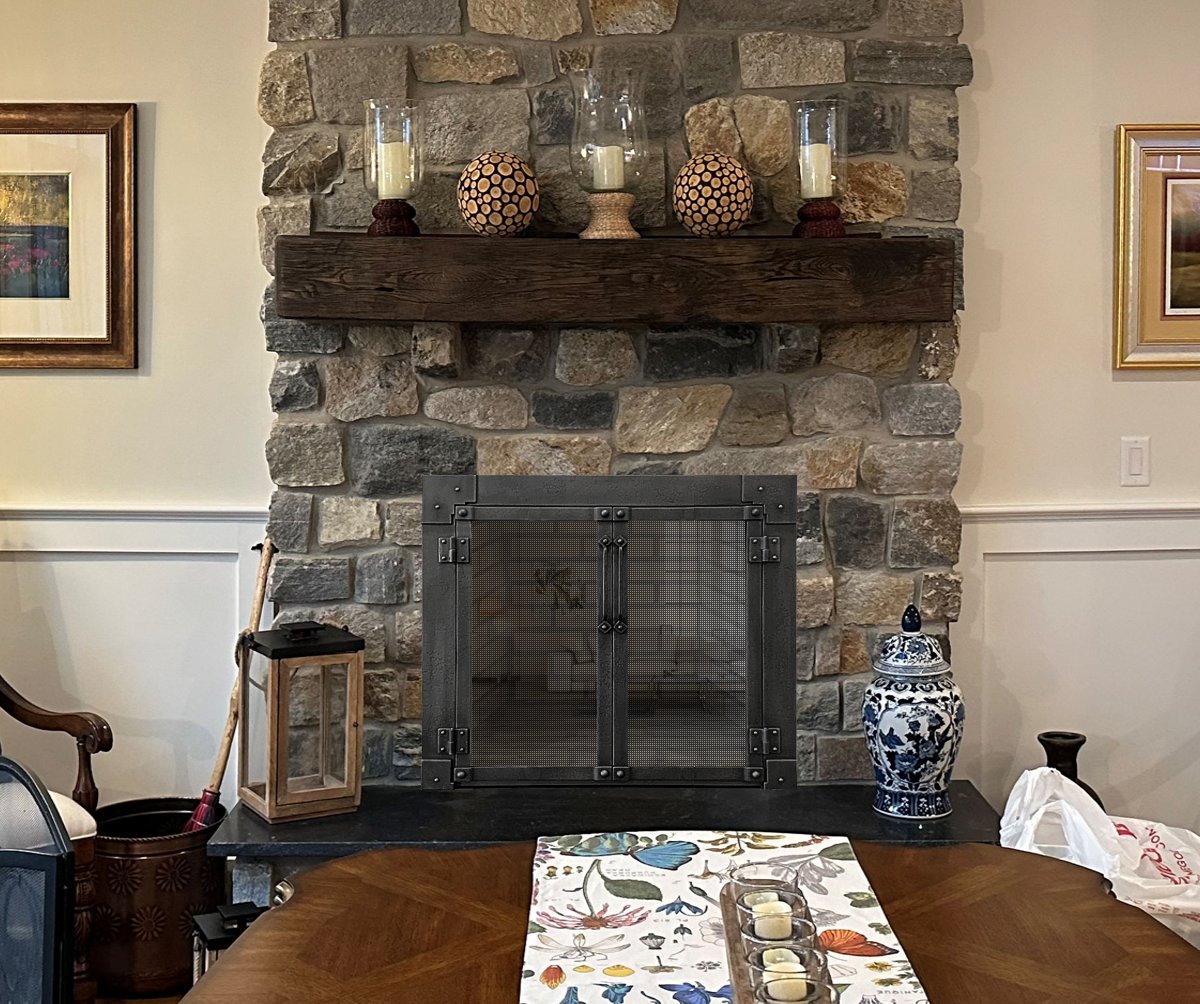

Armada

Option #6: Design Specialties Armada Fireplace Glass Door in Forged Iron with Clear Glass and Mesh Backup Doors. Made by a Blacksmith, this door has a 3" wide frame with a 2 1/4" overlap.

Craftsman

Option #7: Design Specialties MKE Forte in Forged Iron with Clear Glass and Mesh Backup Doors. Made from laser cut steel, the frame can be customized to whatever width we want. In this case, we have a 3 3/4" wide frame with a 3" overlap.

Original Requested Door

Iron Age 6

Option #8: Hearth Creations Iron Age 6 Wrought Iron Glass Door in Metallic Latte with Pyro Ceramic Glass and Gate Mesh Backup Doors. Shown on Fireplace #1

Iron Age 6

Option #9: Hearth Creations Iron Age 6 Wrought Iron Glass Door in Metallic Latte with Pyro Ceramic Glass and Gate Mesh Backup Doors. Shown on Fireplace #2

Inspiration Photo

Hybrid-2

Picture of the original door that was requested.

How To Measure

We need to know the smallest and largest width and height of the openings. You must use a level to mesure correctly. Line up the level to the inner most stone on the left side and mark the hearth at the bottom of the level. Line up the level with the widest stone on the left side and mark the hearth. To the same for the right side then measure the distance between the inner marks.

Measuring Diagram - Closeup of Fireplace #2

W: Width: Narrowest width between the stones WL: Width between narrowest and wides stones (left side) WL: Width between narrowest and wides stones (right side) H1: Smallest height (measure to the bottom of steel lintel under the stones) H2: Tallest height to stones (looks like it's on the right hand side)

Other Pictures

Fig #1 - Closeup of Fireplace #1

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains
