Customer Comments: Looking for some type of doors to minimize drafts, etc. here in NH. Hoping you can help. 60’s California ranch style. I can send more photos from adjacent rooms if that would help.
Our Comments: Based on our phone conversation and subsequent emails, I have determined that the doors must be made similar to how the current brass bar is, with the right side haveing a return. The post at the corner is set out beyond the bricks on the bottom, and those bottom bricks come out beyond the right side of the fireplace. The door must be made from solid steel in order to have a side return.
Fireplace Opening:
Before:
After #1: Room shot of front side
After #2: Room shot of short side
After #3: Closeup of front side. Notice the small return on the right side that was necessary to close the gap.
After #4: Corner view with right side door open.
After #5: Front side closeup. Doors are shown opened to about 90 degrees, but can be opened 180 degrees. Mesh doors are shown closed.
These doors are made from 3/16" thick solid steel that is laser cut. This gives us the ability to wrap the door around the post and create the required return on the right side. The frames can be powder coated or brass plated.
Option #1A: Hearth Creations Flat Steel Corner Fireplace Door in Graphite Powder Coat with Clear Glass Bifold Doors and Gate Mesh Backup Doors.
Option #1B: Hearth Creations Flat Steel Corner Fireplace Door in Graphite Powder Coat with Fully Framed Ceramic Glass Bifold Doors nd Gate Mesh Backup Doors.
Option #2: Hearth Creations Flat Steel Corner Fireplace Door in Gold Powder Coat with Clear Glass and Gate Mesh Backup Doors.
Option #3: Hearth Creations Flat Steel Corner Fireplace Door in Plated Satin Brass with Clear Glass and Gate Mesh Backup Doors.
Final Specifications
Left Side: Refer to Measure Diagram #1 Below
The lintel is the metal bar at the top underneath the top stones. Notice the Brick Line indicated in the diagram. It is important to measure the width on the short side from the corner to the brick line, not to the stones.
LW - Left Width: Measure from corner of steel lintel to Brick Line
LH - Left Height: Measure from the bottom of the steel lintel to the hearth at the left side
CH - Corner Height: Measure from the bottom ofthe steel lintel to the hearth at the corner
A - Space: Narrowest space between the stones and the brick line
Front Side: Refer to Measure Diagram #2 Below
RW - Front Width: Measure from corner of steel lintel to Brick Line
RH - Front Height: Measure from the bottom of the steel lintel to the hearth at the left side
Corner: Refer to Measure Diagram #3 Below
LD - Left Lintel Depth: How deep is the lintel on the left side from the front edge to the brick line
FD - Front Lintel Depth: How deep is the lintel on the front right side to the side wall of the fireplace.
LP1 - Left Post Depth: How far back is the post from the front edge of the lintel
LP2 - Left Bottom Post Depth: Depth from post bracket at bottom to the post
FP1 - Front Post Depth: Depth from post bracket at bottom to the post
FP2 - Front Bottom Post Depth: How far back is the post from the front edge of the lintel
Measure Diagram #1: Left Side

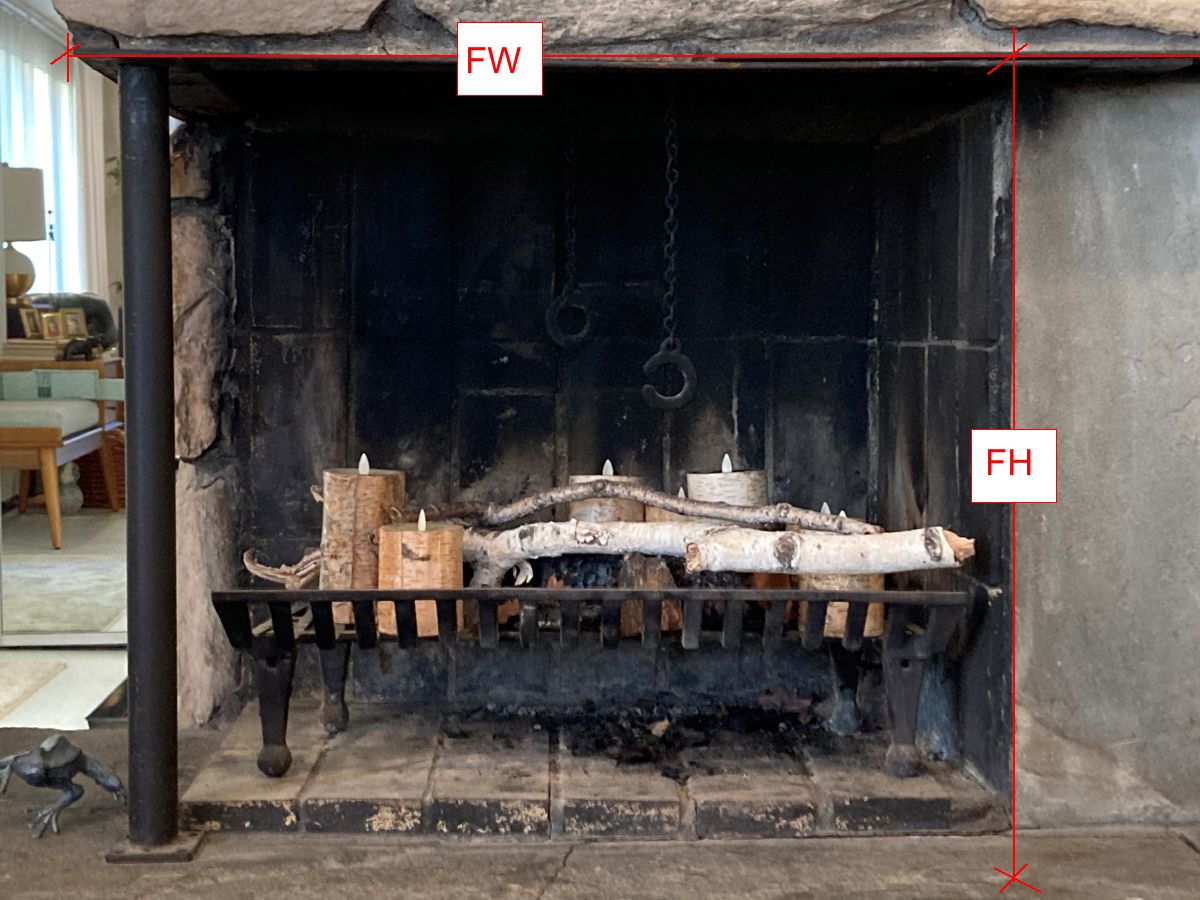

Measure Diagram #2: Front Side
Measure Diagram #3: Corner
Real Example: Hearth Creations Flat Steel Corner Fireplace Door in Gold Powder Coat with Clear Glass and Gate Mesh Backup Doors.
Fig #1 - Closeup
Fig #2 - Room View
Fig #3 - Top Right
Fig #4 - Left Side
Fig #5 - Post
Scale & Finish Disclaimer: Mockups shown on this site are not necessarily to scale and are meant to help you choose the style of your screen or door. The appearance of finishes represented may vary between digital monitors and screens. I do my best to recommend finishes that I believe will blend with your decor and flatter your fireplace. You can view finish options here:
Hearth Creations Finishes
Design Specialties Finishes
Stone Manufacturings Trims & Finishes
Samples for some finishes are available upon request.
