Customer Comments: Need glass doors to center fireplace below TV
Our Comments: Here are examples of doors made with customized frame widths that will allow you to create the illusion that the fireplace is centered on the rock wall.
Fireplace Opening: " W x " H
Before:
Aluminum is an excellent material for fireplace doors because it does not rust and can handle high temperatures when treated with powder coated finishes. It is also the most affordable.
Option #1: Hearth Creations Profile-4 Aluminum Door in Matte Black with Surround Trim, Gray Glass and Mesh Curtains.
Steel doors are more substantial than the less expensive aluminum doors. They are heavy duty and rugged and are more customizable because the frames are laser cut.
Option #2: Hearth Creations Flat Steel Door in Matte Black with Extra Wide Frame, Gray Glass and Mesh Curtains.
Option #3: Hearth Creations Flat Steel Door in Matte Black with Extra Wide Frame, Fixed End Panels, Gray Glass and Mesh Curtains.
Hand crafted doors take on a more rugged natural look for those who appreciate craftsmanship tasteful details.
Option #4: Hearth Creations Iron Age 4 Fireplace Glass Door with Fixed End Panels and Corner Straps and Rivets in Burnished Copper. Shown with Gray Glass and Mesh Curtains.
Option #5: Design Specialties Craftsman Fireplace Door with Fixed Glass End Panels in Ancient Age. Shown with Opaque Black Glass and Mesh Curtains.

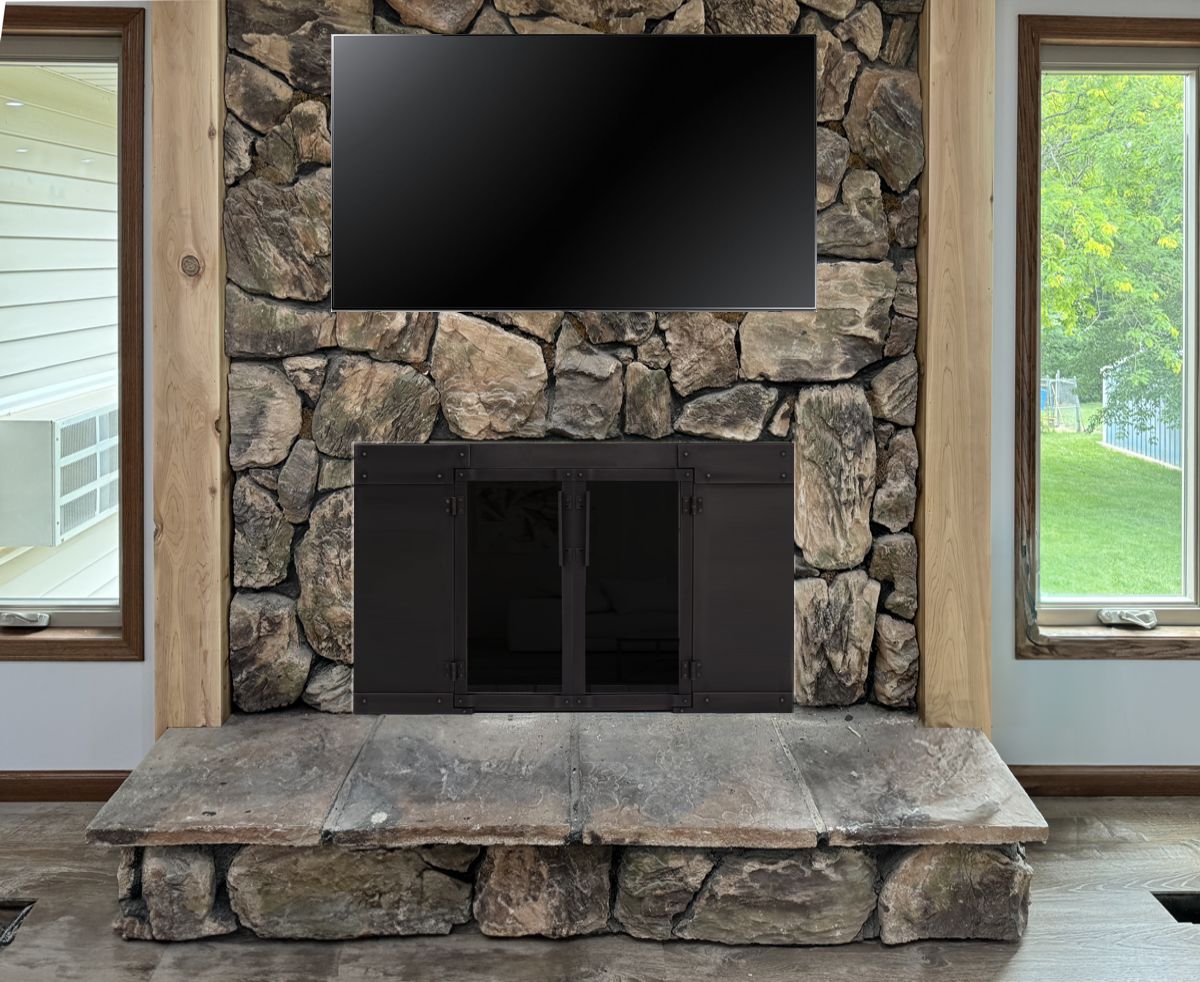

Option #6: Design Specialties MKE Forte with Custom Wide Frame in Flat Black with Gray Glass and Mesh Curtains.
Specifications: The above image assumes 72" between the vertical beams. The door frame must be 1" wider on each side than the amount of overlap needed to allow the subframe to fit inside the opening. We suggest leaving 1/2" room for play on each side. To do so, we will deduct 1" from the opening width. The above math shows the opening width would be 28" centered, or 27" after we allow room for play. The right side determines how much frame we need: 7" + 1.5" (side bricks) + .5" (play) + 1" (subframe) = 10". The overall width of the door would be: 27" (modified opening size) + 10" (overlap left) + 10" (overlap right) = 47". Height would be specified at 28" overal with an opening height of 25" (allowing 1/4" play in height). The frame is made from 3/16" thick laser cut steel. We can add a .75" to 2" return to the back side of the frame to help hide the cut edges of the cultured stone. These specifications will change slightly once all measurements are verified.
Fig #1 - Closeup
Fig #2 - Measurements
Scale & Finish Disclaimer: These mock-ups are not necessarily to scale and are meant to help you choose the style of your screen or door. The appearance of finishes represented may vary between digital monitors and screens. I do my best to recommend finishes that I believe will blend with your decor and flatter your fireplace. You can view finish options here:
Hearth Creations Finishes
Design Specialties Finishes
Stone Manufacturings Trims & Finishes
Samples for some finishes are available upon request.
"I have a passion for designing custom fireplace treatments, and have been doing so for over 35 years. The designs I create are not only tailored to fit perfectly, but fashioned to compliment your room decor and turn your fireplace into a tastefully finished focal point. Take advantage of my Free Design Service and let me show you the possibilities." Here are just a few reasons why you might consider buying from me:
Greg Tillotson (Owner/Designer)
