Custom Screens for Large Stone Corner Firelace - Project #20098

Customer Comments: Hi Greg, Thanks for speaking to me today. Attached are pics of my fireplace.

Please note:

1). Front L bar slightly off level, side is level.
2). Rocks protrude to edge of L bar and overlap above it.
3). Proposed screen can be removable 1 piece, 2 piece or 3 piece.
4). In your opinion, can the added firebricks and facia rocks (#4 on drawing) be removed without destabilizing the L bar. The rocks are mortered to underlying tile from 1950.

Our Comments: The bar and mesh can be removed, but it is not a convenient to do so as it is bolted in place. Regarding the brick and stone divider that was added to your fireplace, that can be removed. It is most likely added to resolve a smoke issue, which is a common problme with open ended fireplaces. If you remove the divider, I recommend adding glass doors, which will help solve the smoke problem. I included that as the last option below.

Fireplace Opening: 60 1/4" W (Front) x 28" W (Side) x 28 3/4-29 1/4" H

Before

Before:

Bar and Mesh Options

If you do not remove the stones inside the fireplace, you will need a surface mounted bar and mesh that is made with a 1 1/2" angle iron.

Solid Brass

Option #1: Stone Manufacturing C92 Surface Mount Corner Bar and Mesh Curtain Screen in Satin Nickel.

Solid Brass

Option #2: Stone Manufacturing C92 Surface Mount Corner Bar and Mesh Curtain Screen in Flat Black.

Solid Brass

Option #3: Stone Manufacturing C92 Inside Mount Bar and Mesh in Satin Nickel (Front Side Only).

Solid Brass

Option #4: Stone Manufacturing C92 Inside Mount Corner Bar and Mesh in Satin Nickel. This is how it would look if you removed the stones inside.

Corner Fireplace Doors

This is now a corner fireplace glass door would look if you remove the stone divider.

Solid Brass

Option #5: Hearth Creations Profile-4 Corner Fireplace Glass Door in Brite Nickel Anodized Aluminum. This would be what I recommend if you remove the stone divider.

Free Standing Screens

Corner Screens

Option #6: Stone Manufacturing Two Separate 1P30M Free Standing Fireplace Wire Mesh Screens in Flat Black.

Corner Screens

Option #7: Stone Manufacturing Two Separate CFR-90 Free Standing Fireplace Curtain Screens in Flat Black.

I-Beam Track with Rollers

I-Beam Track and rollers

The I-Beam track with rollers makes it possible to have a bar and mesh over 48" wide that does not sag. This will be necessary with any of the corner screens above.

Other Pictures

Fig #1 - Measurements

Fig #2 - Front View

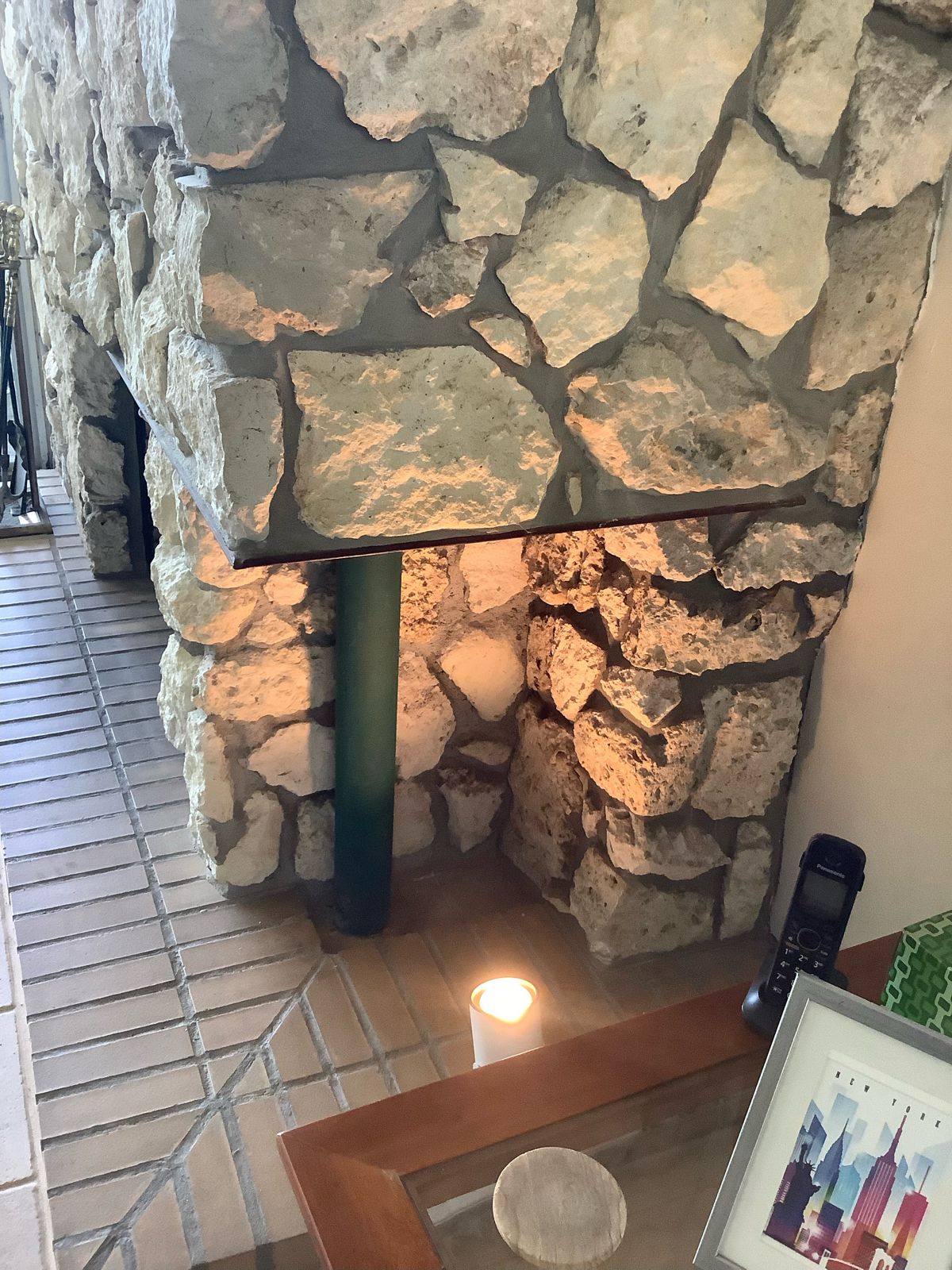

Fig #3 - Side View

Fig #4 - Side View

Fig #5 - Side View

Fig #6 - Room Setting

Fig #7 - Room Setting
