Black Glass Doors for Gray Brick Arched Fireplace - Project #21353

Customer Comments: The square part of the box measurements are 35" W and 24" H, not including the arch space above. Looking for black frame clear glass doors to match the black handles on the doors in the behind picture. We will be staining the fireplace gray to match the backsplash around our sink.

Our Comments: Below are some examples of doors that can be made to fit your arched opening with square handles similar to those in your kitchen. Each of these can be made with tempered or ceramic glass with optional gate mesh backup doors behind the glass.

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures around 450F without shattering and should be at least 8" from the flames. This is sufficient for closing the doors as the fire starts to die out to keep the heat in the home. Ceramic glass can handle sustained temperatures around 1450F with direct flame contact. If you want the ability to burn continuous fires with the doors closed, you need ceramic glass.

Fireplace Opening: 35" W x 24" H (Sides) x ?"H (Center)

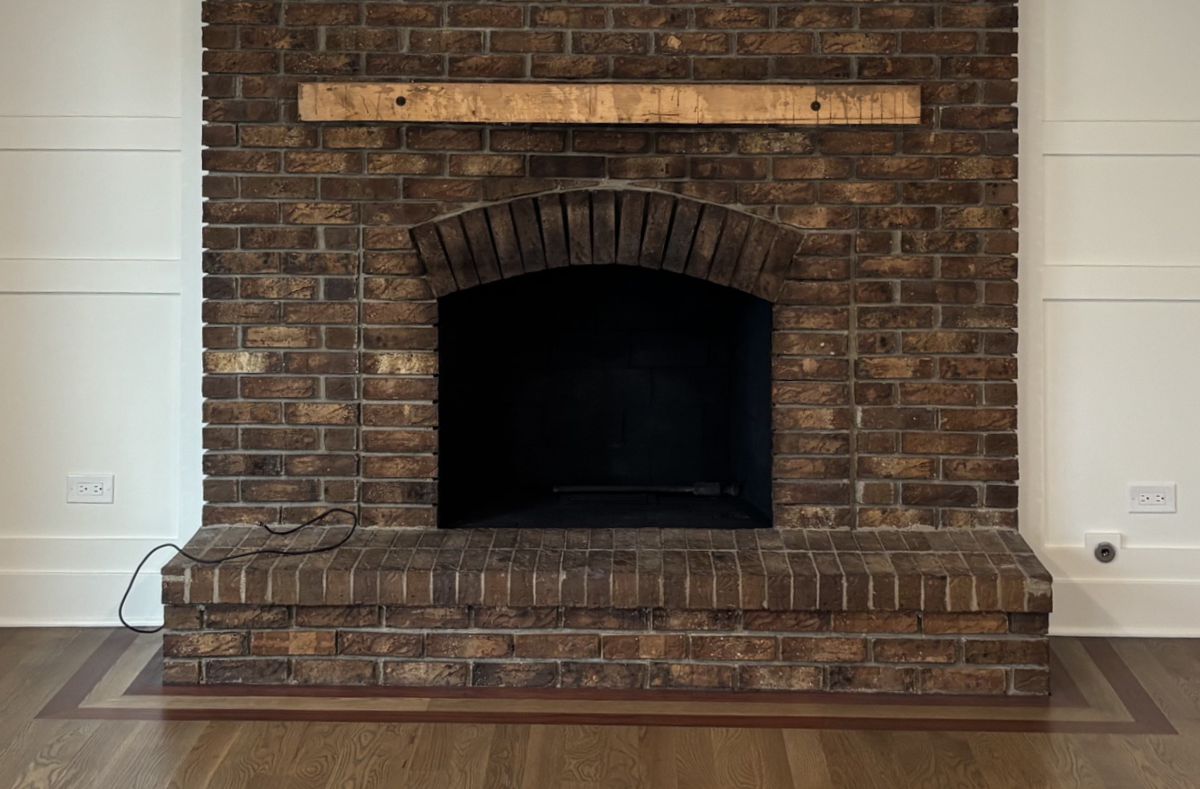

Before

Before:

Medium to High-End Steel Doors

Steel doors are more substantial than the less expensive aluminum doors. They are heavy duty and rugged and are more customizable because the frames are laser cut.

Flat Steel

Option #1: Hearth Creations Flat Steel Arched Cabinet Fireplace Glass Door with Square Handles in Matte Black with Gate Mesh Backup Doors.

Flat Steel

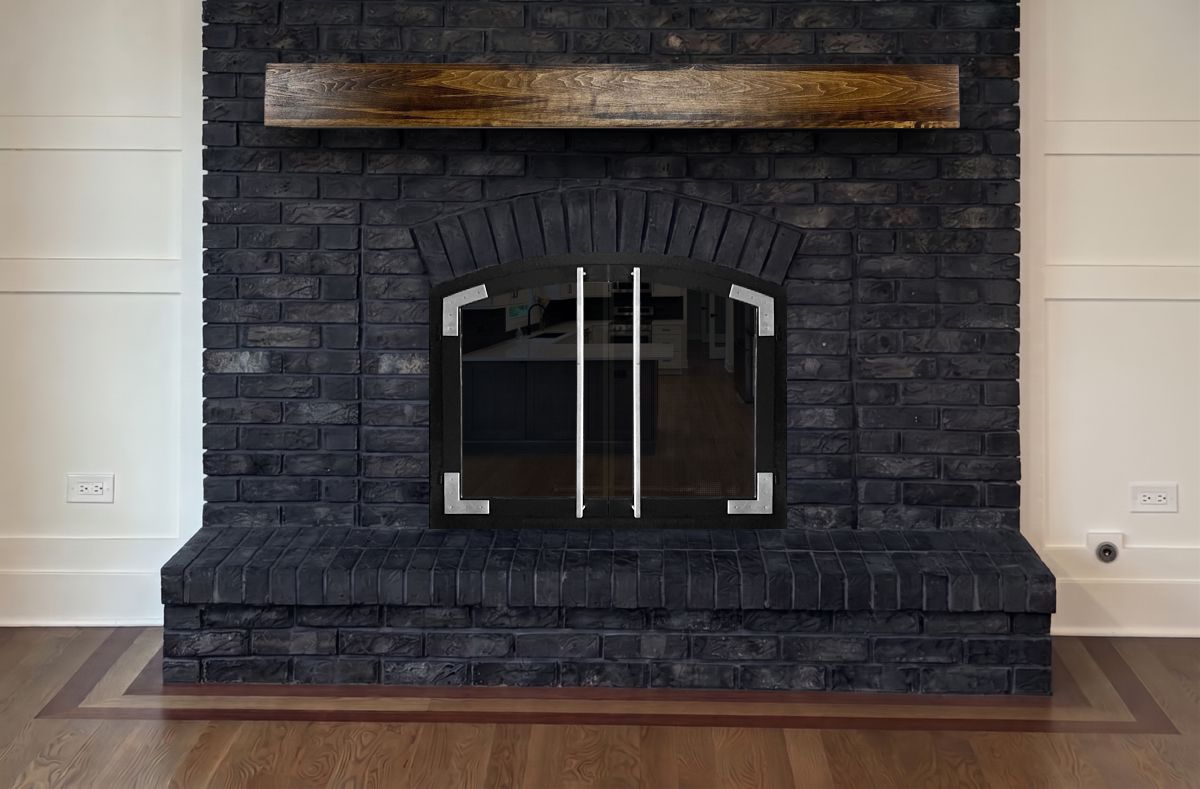

Option #2: Hand Crafted Cast Strong Flat Steel Arched Cabinet Fireplace Glass Door With Black Frame and Special Square Handles and Corner Pieces in Satin Nickel with Gate Mesh Backup Doors. Can also be made in all black.

High End Hand Forged Wrought Iron Doors

This door is Hand forged by a blacksmith from 1/4" thick solid wrought iron with heavy duty gasketed doors for a tighter seal and maximum draft reduction. It can be made with custom handles to match the length of those on your cabinet doors. Not only are these built to be used, they take on a more rugged natural look for those who appreciate craftsmanship and tasteful details. These doors are most commonly ordered with ceramic glass for burning fires with the doors closed.

Wrought Iron

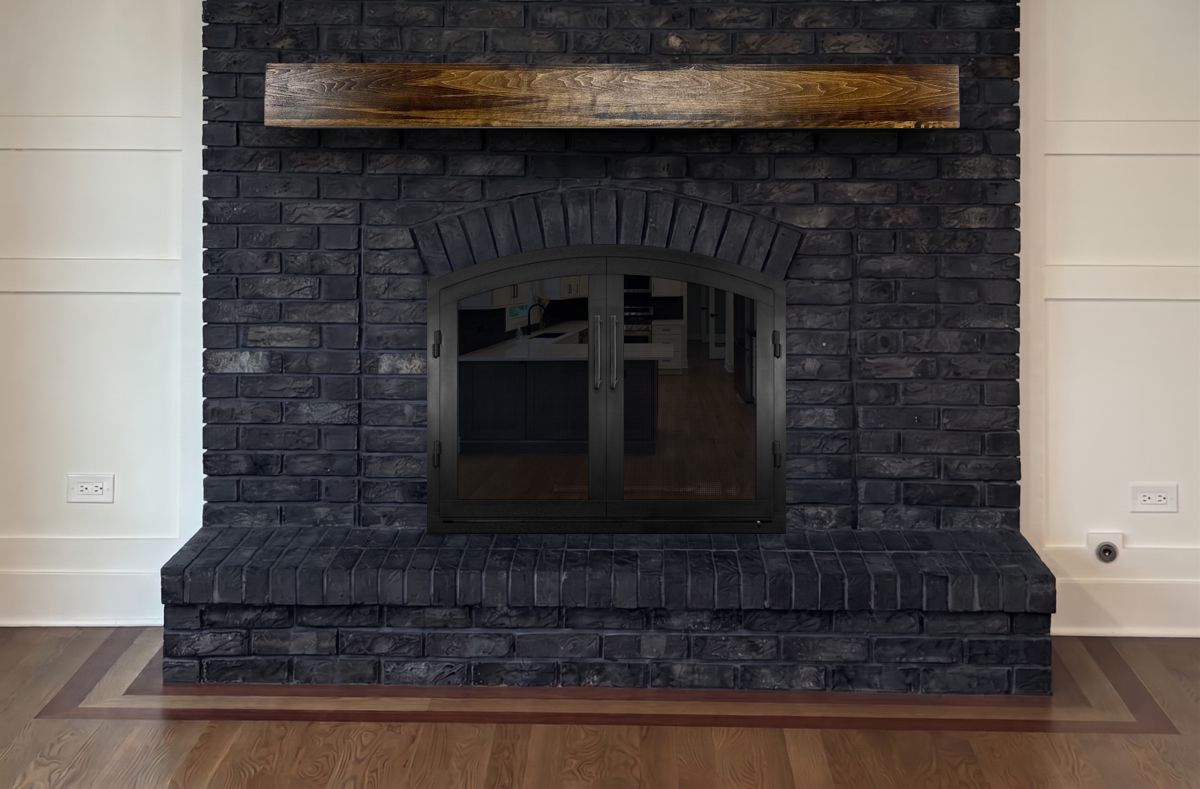

Option #3: Hand Crafted Wrought Iron Arched Gasket Sealed Cabinet Fireplace Door in Burnished Black with Custom Square Handles, Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors.

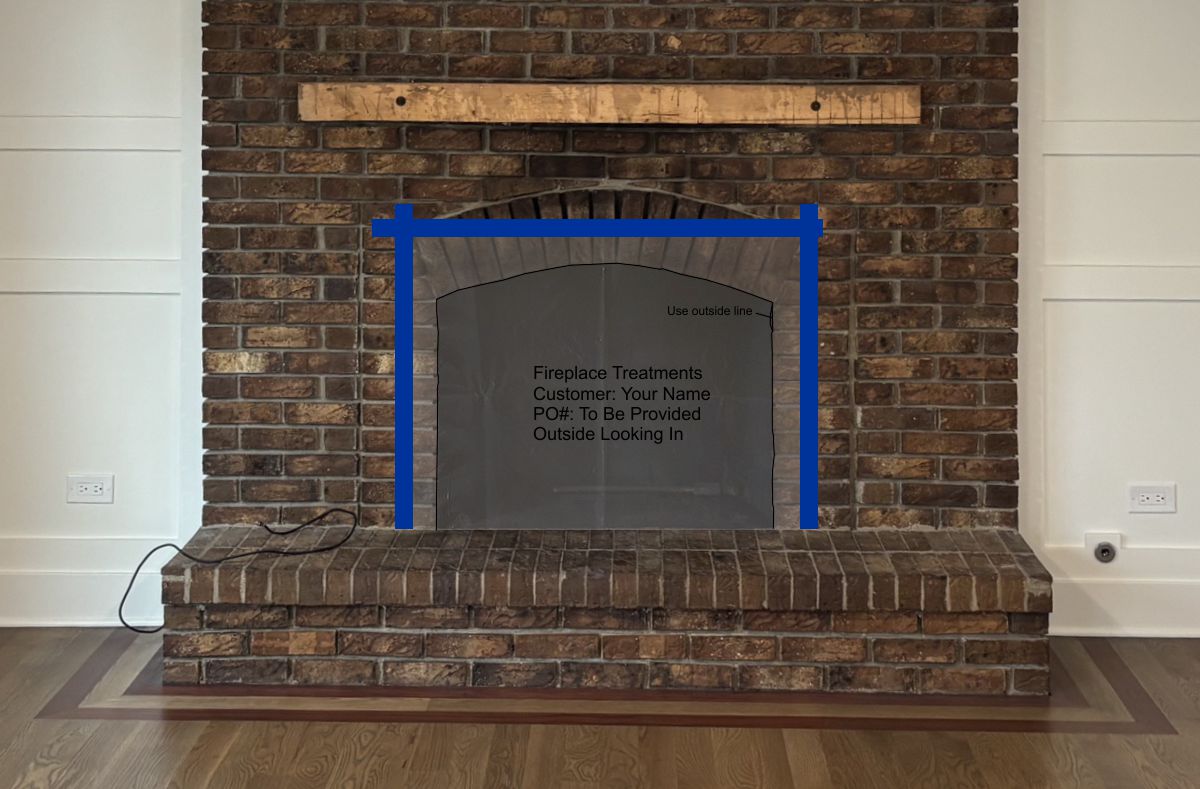

Template Instructions

Template

Template Instructions:

1. Tape a piece of heavy plastic sheeting to the fireplace.
2. Make sure the bottom edge is perfectly straight and even with the hearth.
3. Make sure it is taped tightly enough to remove any wrinkles.
4. Trace the shape of the stones and mortar around the opening with a fine tip marker.
5. If you make a mistake, make a note and point to the correct part of the line that is to be used.
6. Mark the template as shown with: Fireplace Treatments, Customer: (Your Name), PO# (To Be Provided), Outside Looking In.
7. Email me a picture of the template and leave it in place so I can see how it was made and approve it.
8. Once I approve it, you can take it down, cut off the tape and mail it to the address that I will provide.

Other Pictures

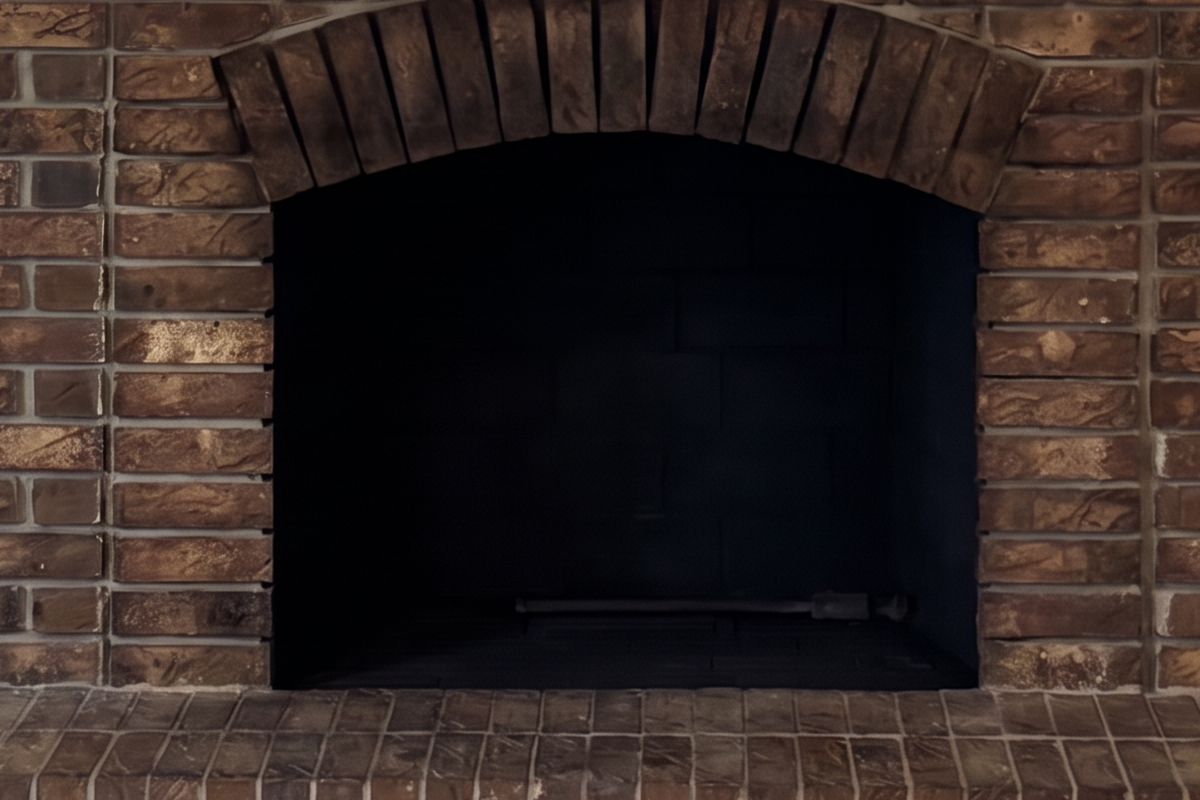

Fig #1 - Closeup

Fig #2 - Room Setting

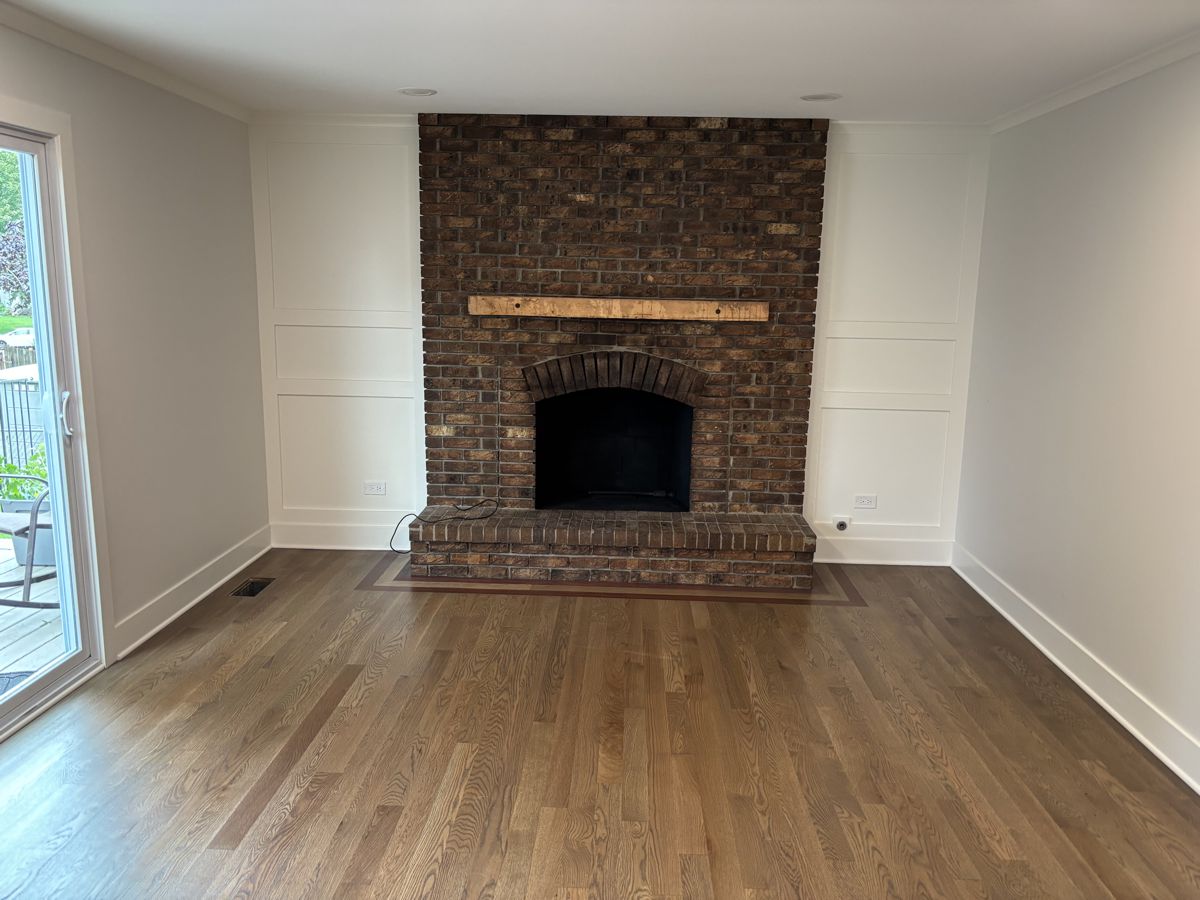

Fig #3 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
