Glass Doors for Arched River Rock Fireplace - Project #21219

Customer Comments: 28 inches height, 40 inches wide, 26 inches deep, 3 inches trim needed to cover irregular rock. Made of real river rock with granite hearth. 33 years old!

Our Comments: I am assuming you are looking for glass doors. Below are representations of the two types that are available: inside fit and overlap. Inside fitting doors will provide a tight seal as they are made to fit inside the opening and the gaps must be filled with mortar. Overlap fitting doors will leave wide gaps between the back of the frame and the stones and will not fit flatly agains the stones since some stick out further than others. The doors I am presenting are made from wrought iron. There are similar doors made from steel. I will provide pricing for both in my quote.

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle temperatures up to about 1450F and can have direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass.

Measuring & Installing: Please read the instructions on this page for: How to Measure and Install Glass Doors on a Rock Fireplace.

Fireplace Opening: 40" W x 28" H x 26"D x 3" Variance

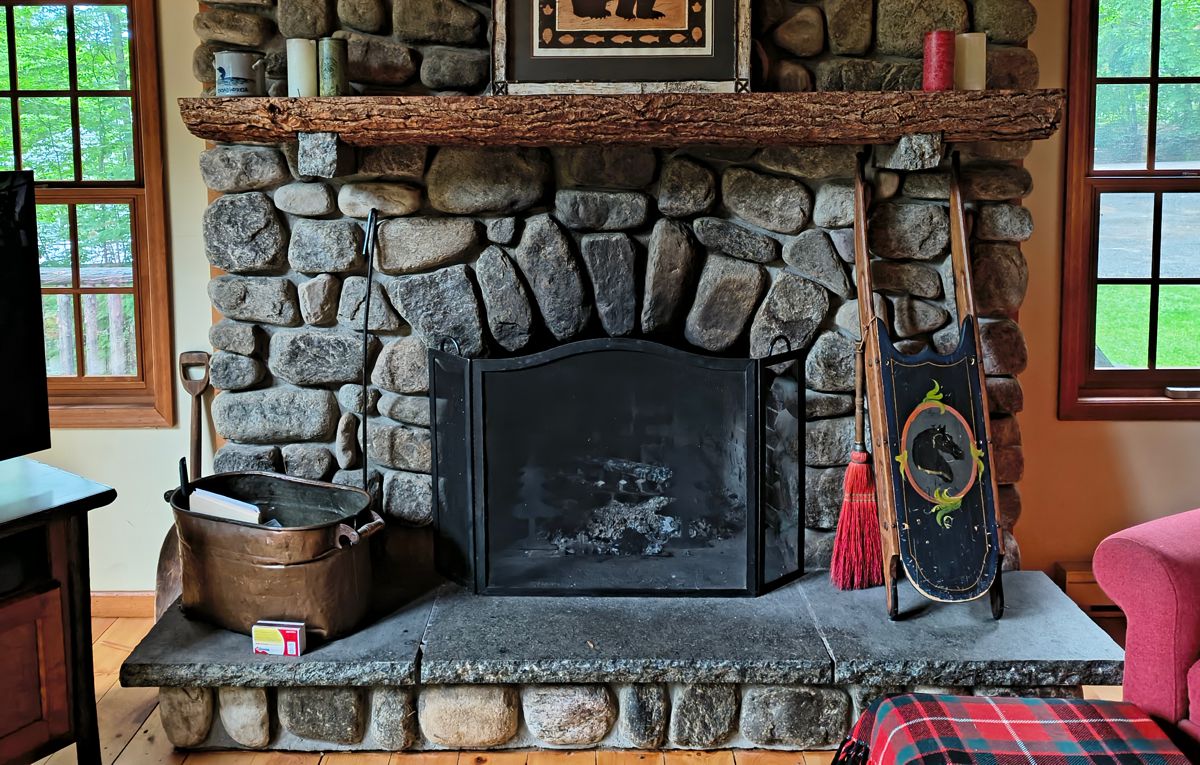

Before

Before:

High End Hand Forged Wrought Iron Doors

Hand forged by a blacksmith from 1/4" thick solid wrought iron with heavy duty gasketed doors for a tighter seal and maximum draft reduction. Not only are these built to be used, they take on a more rugged natural look for those who appreciate craftsmanship and tasteful details. The forging process produces a unique texture that you cannot get with laser cut steel and there are added hammered textures that can be for a more rustic applications. These doors are most commonly ordered with ceramic glass for burning fires with the doors closed.

Wrought Iron

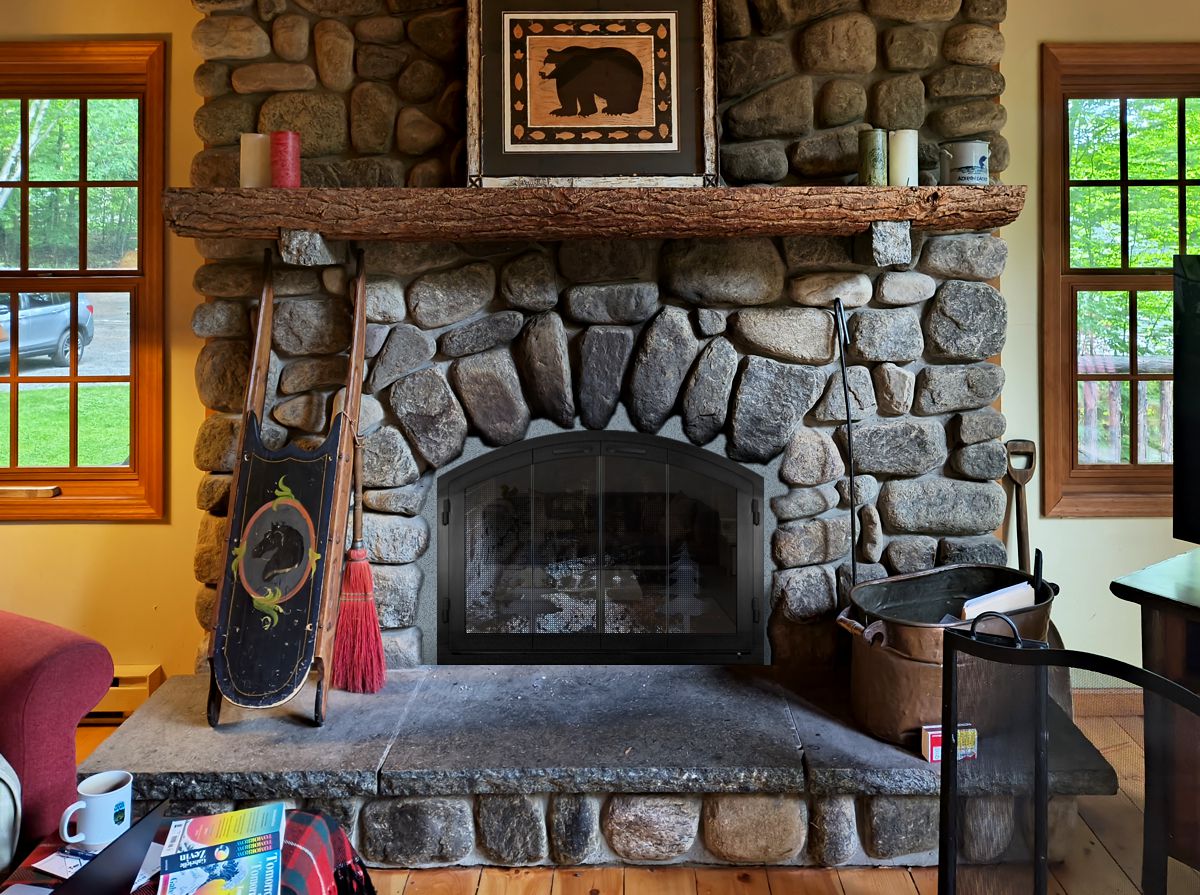

Option #1: Hand Crafted Wrought Iron Bifold Fireplace Door in Burnished Black with Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors. Shown as an inside fit with mortar.

Wrought Iron

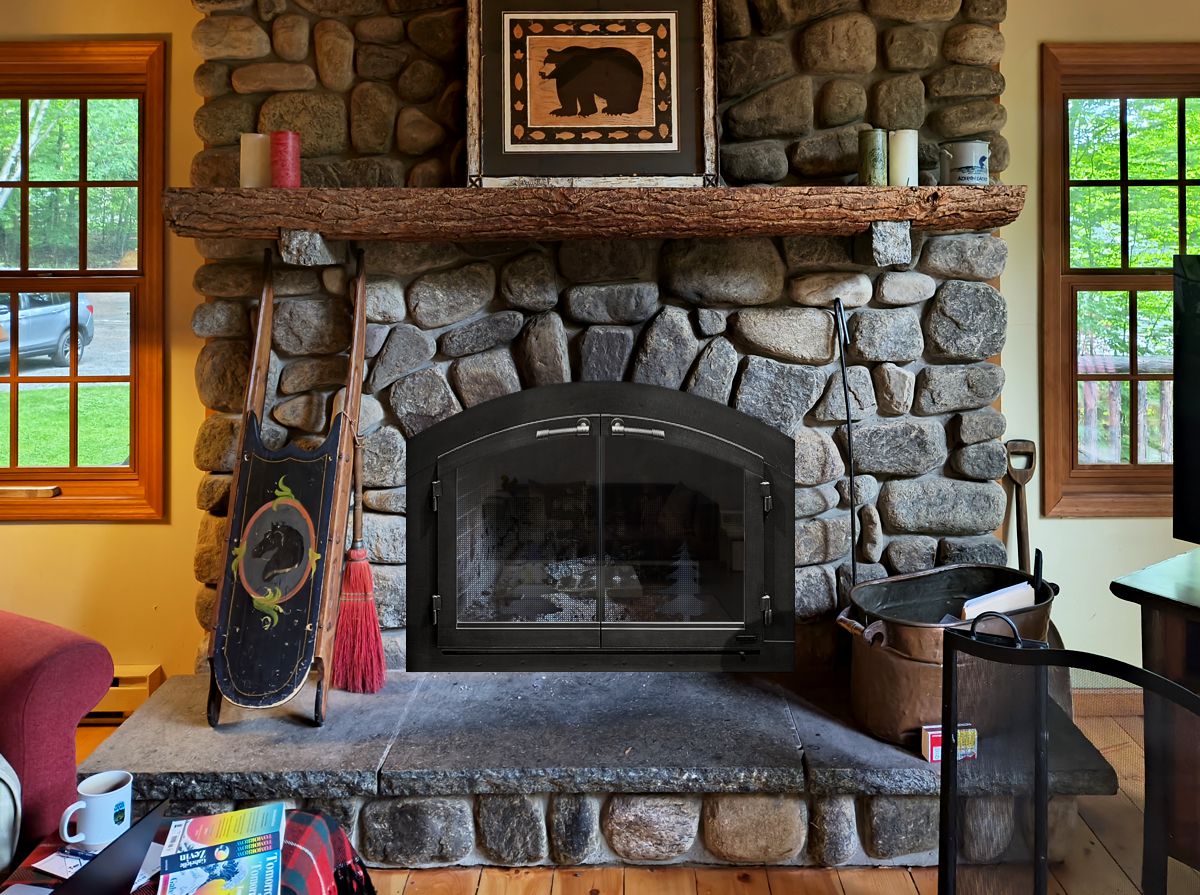

Option #2: Hand Crafted Pacifico Wrought Iron Cabinet Fireplace Door in Burnished Natural Iron with Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors. Shown as an overlap fit with a wide frame.

Other Pictures

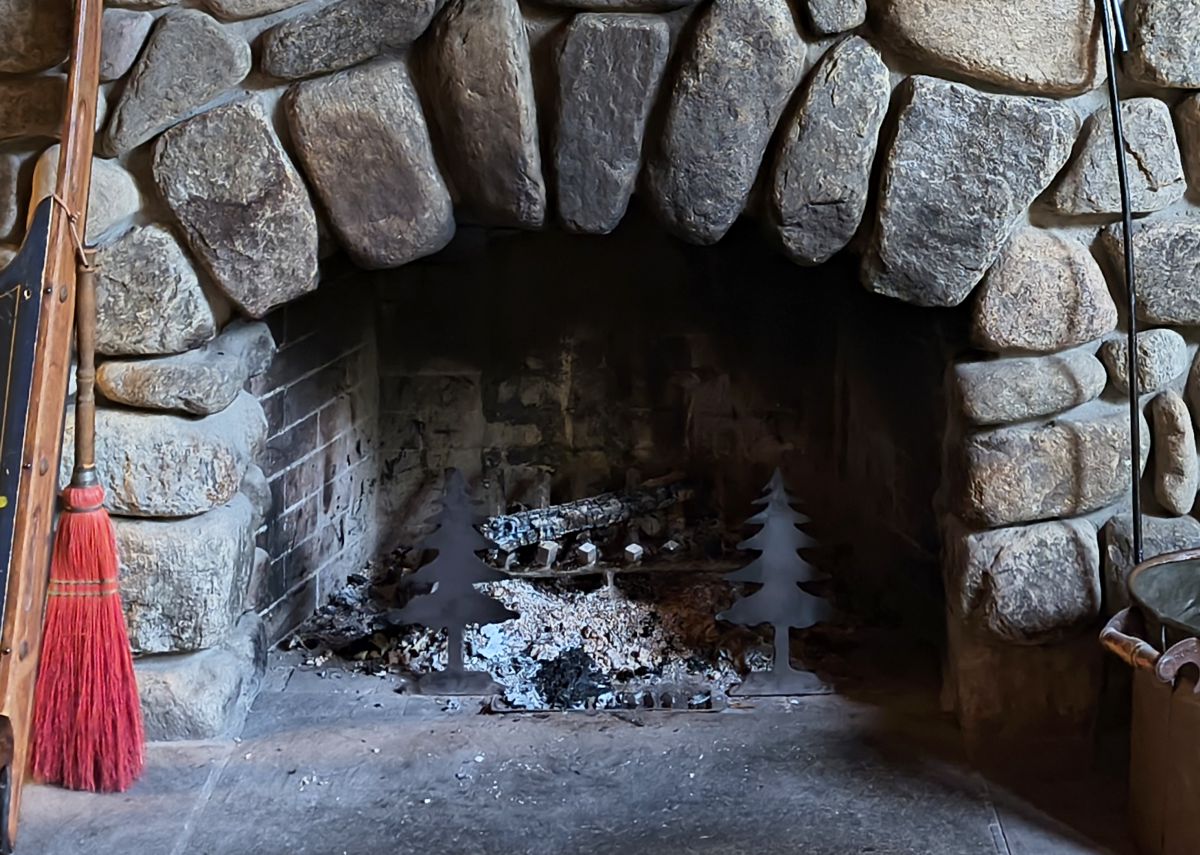

Fig #1 - Closeup

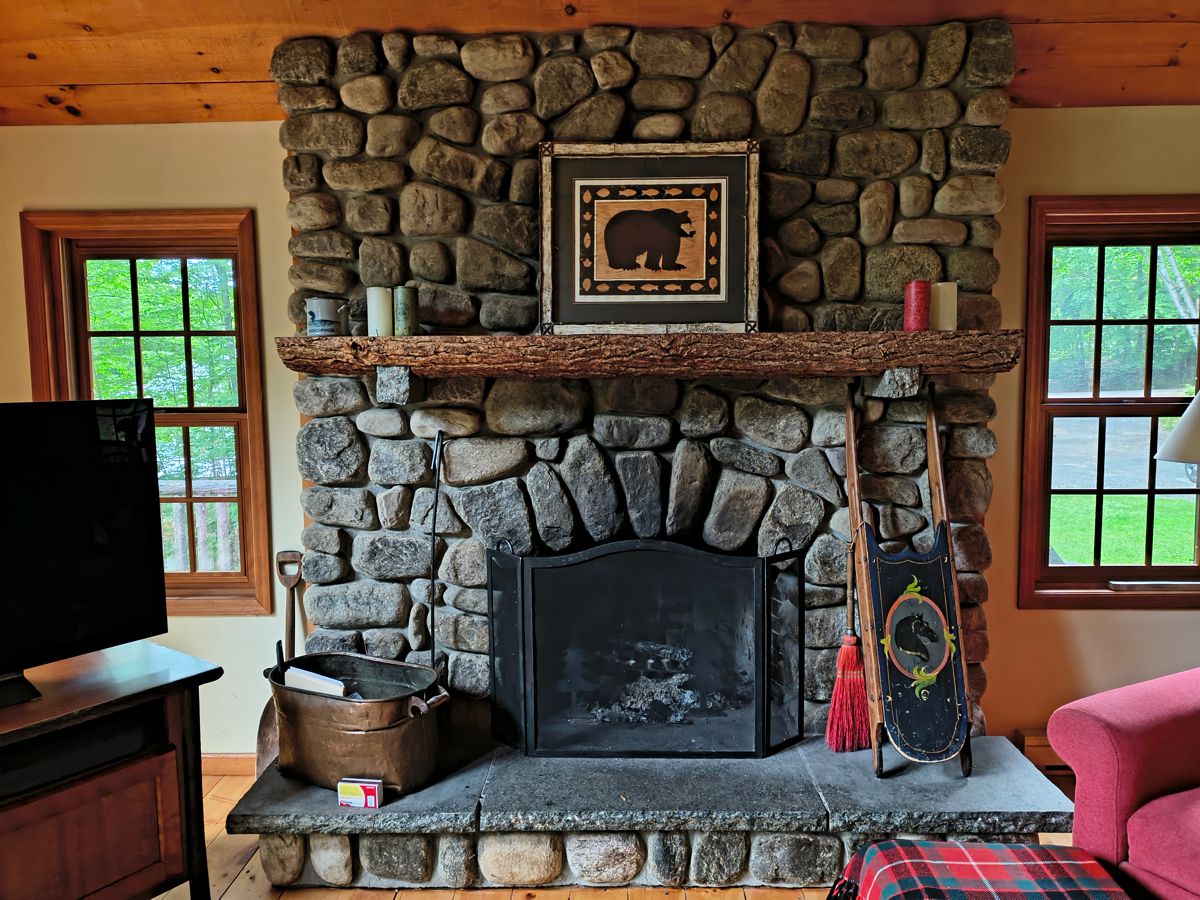

Fig #2 - Room Setting

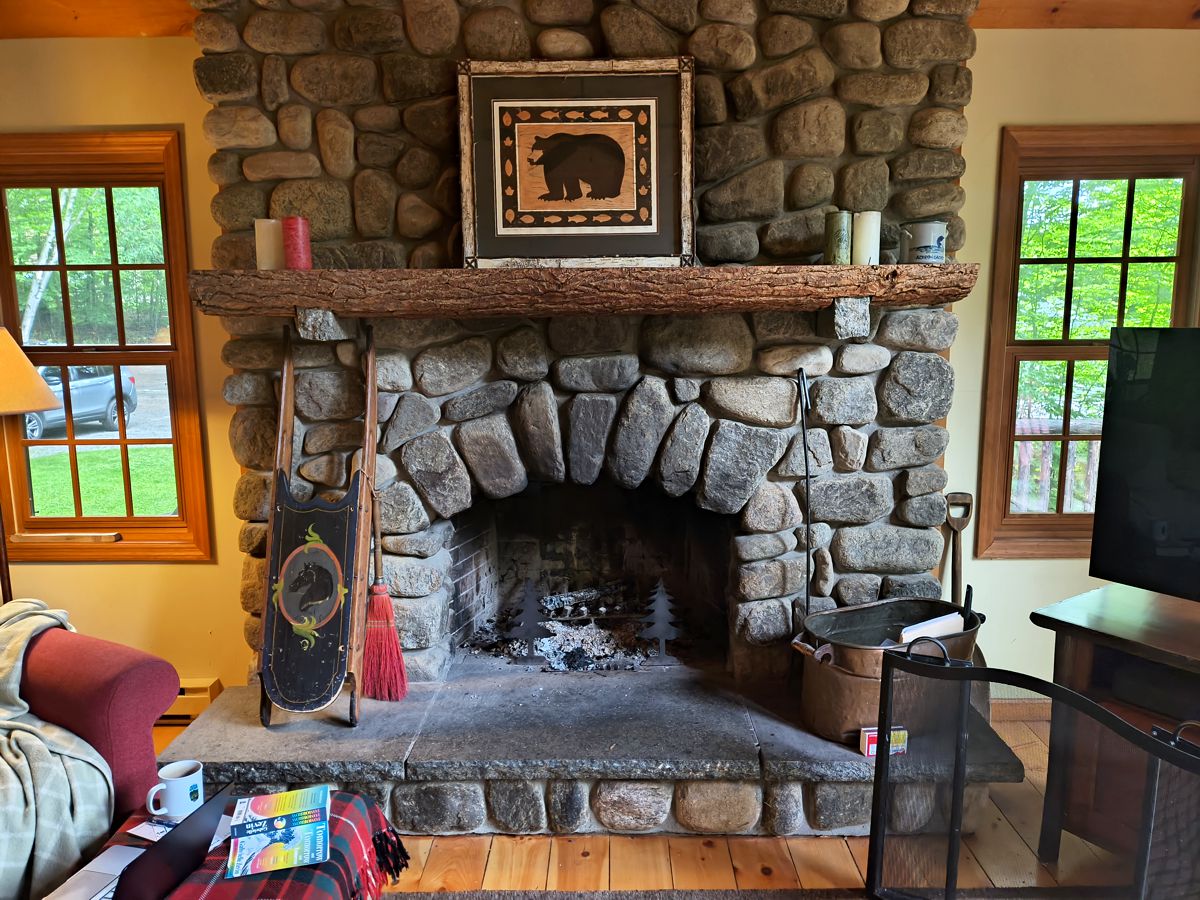

Fig #3 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
